Almost all 28V DC power supplies in this range are mains powered units, with the exception of the TC400/28 units which is a battery unit.

The RBSC and RBPS range of 28V DC power supplies are specifically designed and built by Red Box to provide the cleanest possible DC power unit. The products range from 25 amps up to 600 amps, higher power units are available on request. The units are able to switch between two voltages, set at 14V and 28V as standard, but you may have this set at different voltages on request.

The TC400/28C is a battery powered continuous power supply allowing continuous power for a limited time only. An amber beacon is fitted to indicate low voltage on the unit. By monitoring the voltage of the unit you can also use this unit to start the aircraft.

For starting only requirements we have either lead acid units or lighter lithium 28V start units. The 28V DC power range expands to provide a combination of starting and continuous power from a mains electrical supply for use on the apron or flight line our HybRED or battery powered systems.

28V DC Power Supplies Include:

Direct connection to aircraft or land vehicle.
Rugged steel case.
Fan cooled.
User switchable between 14V and 28V.

Protection

Overload.
Over Voltage.
Over Current.
Short Circuit.
EN60950-1: 2006
Emission – EN55022-B

---

View Product Specification Tables

---

Battery Carts

	Product Name	Volts (AC)	Volts (DC)	Peak Amps	Maximum S/C Amps	Continuous Amps	Battery Type	Frequency	Output Power (kvA)	Power Factor	Weight (kg)
	TC400/28C 3500A peak and 23A for 3 hours		28	3500	5200	95A @ 1 hour	Lead Acid				140-165 kg
	TC400/28T 7000A peak and 47A for 3 hours		28	7000	10400	190A @ 1 hour	Lead Acid				400 kg
	TC400/28TR 10400A peak and 102A for 3 hours		28	10500	15600	285A @ 1 hour	Lead Acid				500 kg
	TC400/28QU 14000A peak and 136A for 3 hours		28	14000	20800	380A @ 1 hour	Lead Acid				600 kg

---

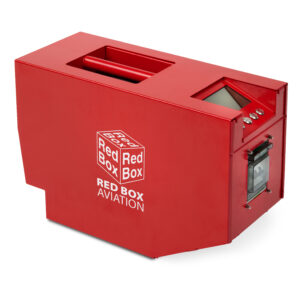

Mains Powered 28V and 14V DC Power Supplies

	Product Name	Volts (AC)	Volts (DC)	Peak Amps	Maximum S/C Amps	Continuous Amps	Battery Type	Frequency	Output Power (kvA)	Power Factor	Weight (kg)
	RBPS25 25A continuous at 14/28V DC		14.4 / 28.8			25					5 kg
	RBPS50 50A continuous at 14/28V DC		14.4 / 28.8			50					6.5 kg
	RBPS75 75A continuous at 14/28V DC		14.4 / 28.8			75					15 kg (nominal)
	RBPS100 100A continuous at 14/28V DC		14.4 / 28.8			100					16 kg (nominal)
	RBSC50 50A continuous at 14/28V DC		14.4 / 28.8			50					16 kg (nominal)
	RBSC100 100A continuous at 14/28V DC		14.4 / 28.8			100					16 kg (nominal)
	RBSC150 150A continuous at 14/28V DC		14.4 / 28.8			150					36 kg /46 kg (nominal)
	RBSC225 225A continuous at 14/28V DC		14.4 / 28.8			225					46 kg /56 kg (nominal)
	RBSC300 300A continuous at 14/28V DC		14.4 / 28.5			300					105 kg
	RBSC450 450A continuous at 14/28V DC		14.4 / 28.5			450					130 kg
	RBSC600 600A continuous at 14/28V DC		14.4 / 28.5			600					150 kg

---

Please contact Red Box Aviation if you have any questions regarding our range of 28V DC Power Supplies and we will be happy to help.
